Minimum Order 1 roll - Web Order for USA customers and Save 20% (Do not use Web Order if your shipping destination is New York State - call our order desk instead to order) |
||||||||
|
Part Number |
Profile Shape |
Type | Color | Width | Length |
List Price |
Web Order Price |
Click on Cart To Order |
|
ABST-TR-16 |
Triangular | I I | Oxide-Red | 1" | 36 feet | $33.80 | $27.04 | |
|
ABST-TB-16 |
Triangular | I I | Black | 1" | 36 feet | $33.80 | $27.04 | |
|
ABST-RR-16 |
Rectangular | I | Oxide-Red | 1" | 36 feet | $34.71 | $27.77 | |
|
ABST-RB-16 |
Rectangular | I | Black | 1" | 36 feet | $34.71 | $27.77 | |
|
ABST-RR-24 |
Rectangular | I | Oxide-Red | 1.5" | 36 feet | $48.77 | $39.02 | |
|
ABST-RB-24 |
Rectangular | I | Black | 1.5" | 36 feet | $48.77 | $39.02 | |
|
Roll CofC |
$6.00 | |||||||
|
Batch CofC |
$10.00 | |||||||
Self-Fusing Mil Spec (Mil-I-46852 & A-A-59163) High-Temperature Silicone Tape
General Information
FlameShieldä Self Fusing Tapes are a Silicone Tape that is self-extinguishing & non-flammable without an adhesive specifically designed for aviation, marine, industrial and commercial use. Forms an excellent seal that is weather / water / air-tight when wrapped around electrical splices & connections, connectors, cable and wiring splices, hydraulic hose protection sleeves, duct joints and other electro-mechanical devices.
The special silicone formulation of this tape self-fuses (self-amalgamating) when stretched and over-wrapped. Completely flexible at cold temperatures and can be used to +500ºF / +260ºC continuous exposure. Does not support combustion and resists heat, flame, solder drips, slag, sparks, Ozone, UV light and contamination.

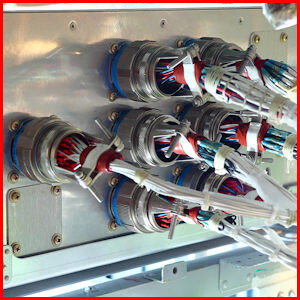

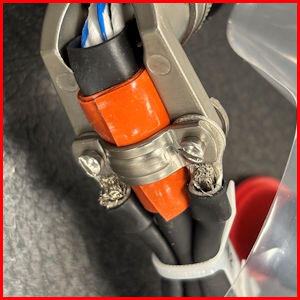

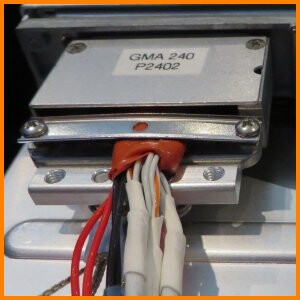

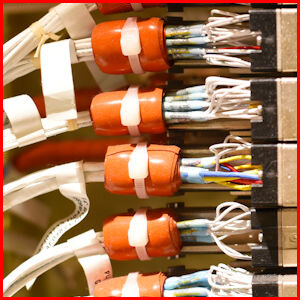

Can be wrapped over oily or wet surfaces and is an excellent emergency repair tape. Used extensively as an avionics tape for wire and cable bundling and to protect electrical splices and connectors.
Self-Fusing / Bonding Time
This Self Fusing Tape when over-wrapped under tension adheres to itself and fuses, forming a solid protective shield in 24 hours at room temperature or in just 4 hours at +356ºF / +180ºC. The tape starts to self-fuse / self-bond as it is used, and can be re-seated if necessary within a few seconds of over-wrapping. After a few minutes it is usually necessary to remove the tape with a knife.
Highly Resistant to Harsh Environments
Our self fusing tape resists fuels, oils, acids, solvents, UV, Ozone, high-heat, flame exposure, solder drips & sparks. The proprietary silicone formulation provides optimal thermal dispersion (high thermal conductivity) and also gives this tape its iron-oxide red color.
Easy & Clean to Use
FlameShieldä Self Fusing Tape incorporates a blue marking stripe along its center, making it easy to over-wrap at 50% when taping long lengths. The triangular profile of the tape (thickest in the centre and reducing thickness towards each edge) ensures a smooth finish to the installation with minimum ridging. Easy to remove with a sharp blade while curing or when completely cured and does not leave a gummy or sticky residue the way pressure sensitive adhesive tapes such as standard vinyl electrical tapes or duct tapes do.
How to Install FlameShieldä Self-Fusing Silicone Tape
Lift off the end of the self fusing tape from its backing film and then hold the free end onto what the tape is being installed on. With your other hand which is holding the remainder of the tape roll, moderately pull or stretch the tape while over-lapping the wrap. The stretching action activates the special formulation of silicone rubber with the result of the tape self-binding / self-fusing to itself.
Many Practical Uses
FlameShieldä Self Fusing Tapes makes for easy hose and cable bundling, replacing tie-wraps. Excellent for fixing leaks in piping and hoses. Makes a good emergency fan belt. Provides excellent weather protection for outdoor electrical and electronic connections. Great as a first-aid tape to hold splints & bandages in place.
Specifications & Standards
FlameShieldä Self Fusing Tape meets many or all of the specifications of the following standards:
MIL-I-46852, A-A-59163, ASTM D412, ASTM D 119, ASTM D150, ASTM D624, ASTM D2148, ASTM D2240.
FlameShieldä Self Fusing Tape may also be certified to the following specifications upon request (fees apply):
Commercial Specification A-A-59163 Type I & II (Previously MIL-I-46852C Type I & II), Military Specification MIL-I-22444C,
Underwriters Laboratories Inc UL-510, Boeing DMS2186 Type II, Lockheed Martin MMS J517 & 5-00857, Safe Flight 59562-5
Systems & Electronics Inc ES7889, McDonnell Douglas Helicopter HS5215, General Dynamics P5384 Type II,
General Electric A50A493 / A50E112 / P5384, Rohr RMS315, FAR 25.853, CSA 22.2, Premier Farnell Corp 810112,
83586, CTB-15, 608036-1, P-36728
FlameShieldä Self Fusing Tapes are a Silicone Tape that is self-extinguishing & non-flammable without an adhesive specifically designed for aviation, marine, industrial and commercial use. Forms an excellent seal that is weather / water / air-tight when wrapped around electrical splices & connections, connectors, cable and wiring splices, hydraulic hose protection sleeves, duct joints and other electro-mechanical devices.
The special silicone formulation of this tape self-fuses (self-amalgamating) when stretched and over-wrapped. Completely flexible at cold temperatures and can be used to +500ºF / +260ºC continuous exposure. Does not support combustion and resists heat, flame, solder drips, slag, sparks, Ozone, UV light and contamination.
Can be wrapped over oily or wet surfaces and is an excellent emergency repair tape. Used extensively as an avionics tape for wire and cable bundling and to protect electrical splices and connectors.
Self-Fusing / Bonding Time
This Self Fusing Tape when over-wrapped under tension adheres to itself and fuses, forming a solid protective shield in 24 hours at room temperature or in just 4 hours at +356ºF / +180ºC. The tape starts to self-fuse / self-bond as it is used, and can be re-seated if necessary within a few seconds of over-wrapping. After a few minutes it is usually necessary to remove the tape with a knife.
Highly Resistant to Harsh Environments
Our self fusing tape resists fuels, oils, acids, solvents, UV, Ozone, high-heat, flame exposure, solder drips & sparks. The proprietary silicone formulation provides optimal thermal dispersion (high thermal conductivity) and also gives this tape its iron-oxide red color.
Easy & Clean to Use
FlameShieldä Self Fusing Tape incorporates a blue marking stripe along its center, making it easy to over-wrap at 50% when taping long lengths. The triangular profile of the tape (thickest in the centre and reducing thickness towards each edge) ensures a smooth finish to the installation with minimum ridging. Easy to remove with a sharp blade while curing or when completely cured and does not leave a gummy or sticky residue the way pressure sensitive adhesive tapes such as standard vinyl electrical tapes or duct tapes do.
How to Install FlameShieldä Self-Fusing Silicone Tape
Lift off the end of the self fusing tape from its backing film and then hold the free end onto what the tape is being installed on. With your other hand which is holding the remainder of the tape roll, moderately pull or stretch the tape while over-lapping the wrap. The stretching action activates the special formulation of silicone rubber with the result of the tape self-binding / self-fusing to itself.
Many Practical Uses
FlameShieldä Self Fusing Tapes makes for easy hose and cable bundling, replacing tie-wraps. Excellent for fixing leaks in piping and hoses. Makes a good emergency fan belt. Provides excellent weather protection for outdoor electrical and electronic connections. Great as a first-aid tape to hold splints & bandages in place.
Specifications & Standards
FlameShieldä Self Fusing Tape meets many or all of the specifications of the following standards:
MIL-I-46852, A-A-59163, ASTM D412, ASTM D 119, ASTM D150, ASTM D624, ASTM D2148, ASTM D2240.
FlameShieldä Self Fusing Tape may also be certified to the following specifications upon request (fees apply):
Commercial Specification A-A-59163 Type I & II (Previously MIL-I-46852C Type I & II), Military Specification MIL-I-22444C,
Underwriters Laboratories Inc UL-510, Boeing DMS2186 Type II, Lockheed Martin MMS J517 & 5-00857, Safe Flight 59562-5
Systems & Electronics Inc ES7889, McDonnell Douglas Helicopter HS5215, General Dynamics P5384 Type II,
General Electric A50A493 / A50E112 / P5384, Rohr RMS315, FAR 25.853, CSA 22.2, Premier Farnell Corp 810112,
83586, CTB-15, 608036-1, P-36728
FlameShield™ Self Fusing Tape
for Aviation, Commercial, Industrial & Marine Use.
Non-flammable & self-extinguishing.
for Aviation, Commercial, Industrial & Marine Use.
Non-flammable & self-extinguishing.
We recommend Microsoft
Internet Explorer for
best results on this site.
Internet Explorer for
best results on this site.
We Accept:
Contact us for volume
discounts when
purchasing 10 rolls
or more
discounts when
purchasing 10 rolls
or more
All tapes meet Mil-I-46852 / A-A-59163.
A roll Certificate of Conformance is available at $6.00.
A batch CofC is available at $10.00 covering multiple roll purchases.
We maintain traceability records.
Customers outside of USA please call to order.
PLEASE CALL IF YOU REQUIRE SPECIAL SHIPPING
A roll Certificate of Conformance is available at $6.00.
A batch CofC is available at $10.00 covering multiple roll purchases.
We maintain traceability records.
Customers outside of USA please call to order.
PLEASE CALL IF YOU REQUIRE SPECIAL SHIPPING
Mil Spec (Mil-I-46852 and A-A-59163) FlameShield™ tape Type I is a rectangular profile tape and Type II is a triangular profile tape. Type II tape is easier to use and provides a better finish than type I tape when spiral wrapping cables, hoses, pipes or tools. The triangular profile of the tape (the center is thicker than the edges) provides a smooth edge where the overlap of the tape occurs. The thinner edges of the type II tape also makes it easier to wrap over curved hoses, pipes or wiring, or over elbows and "T"s.
